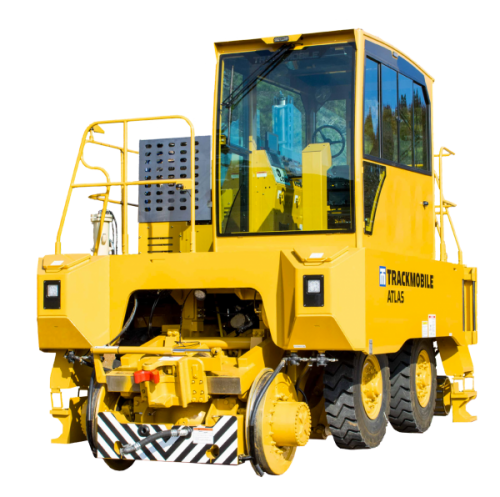

Atlas

The Atlas is Trackmobile’s highest capacity model. It is designed for more rugged and higher duty cycle applications and optimized for the most severe rail conditions and for operator comfort. As the premier model, the Atlas offers many options as standard features.

FEATURES

  • Upgraded Jumpseat
  • 35,000 BTU with 550 CFM HVAC
  • Underhood Engine and Work Lights
  • Fire Extinguisher, 5 pounds
  • Heavy-duty Mine Service Foam Filled Tires
  • Patented MAX-Tran and MAX-Trac systems
  • Train Air Charge Indicator
Enhanced features, such as:
  • Upgraded traverse coupler control valve that improves performance in tight curves
  • Enhanced hydraulic roadwheel lift, allowing 33% faster wheel extension
  • Locking rear railwheel alignment window cover to better maintain cab temperature and reduce noise
  • Enhanced cab with 12 step epoxy dipping and finish painting that penetrates and seals all crevices for superior rust resistance
  • Premium HVAC system for unparalleled defrost, heating, and cooling effectiveness
  • Fully suspended cab for reduced rail vibration and enhanced operator comfort
  • Forged steel wheels to provide longer wheel life
  • Transmission mounted hydraulic parking brake, using self-contained wet disc brakes
  • Tinted and tempered glass that meets ANSI 26.1 standard
  • Ergonomically designed cab with inset window and door seals
Other standard features of the Atlas model include:
  • Engine: Cummins 350 HP, QSL9 Turbo-charged Diesel
  • Body Frame: Heavy-duty, welded 2.5” steel deck plates and 1.25” side plates
  • Mainframe: High-strength welded steel with 8” thick ballast plates and 4” thick structural plates
  • Pivoting frame: Heavy-duty 6” thick split pivoting mainframe and 8” thick mounting plate with oscillating bearing allow pivots up to 10°
  • Transmission: John Deere/Funk DF250 Powershift with torque converter
  • Rail and Road Drive: air activated locking differentials and outboard internal planetary axles
  • Embedded LED headlights
  • 100 CFM air compressor system
  • Fully suspended cab for reduced rail vibration and enhanced operator comfort

Standard Features

    • CAN-Bus Control System
    • On Board Diagnostics
    • UltraView 7” Bright Color Display
    • Air Ride, High-Back Swivel Seat
    • Joystick and Armrest Controls
    • Neutral Braking
    • Programmed Throttle Control
    • Automatic/Manual Power-Shift Transmission
    • In-cab Train Air Controls
    • Safe-T-Vue™ 360° Camera System
    • Full LED lighting package
      • (4) Strobe/Warning lights – surface mounted on each face side for a total of (4) strobes per machine.
      • (2) LED Cab Lighting –interior LED dome light containing one (1) white and one (2) red lights controlled by a single switch.
      • (2) LED Step Lighting – for night operations and safety.
      • (4) LED Headlights –white colored LED spot lights, two (2) located at each end of the machine.
      • (2) LED flood lights to illuminate coupler, one (1) each end of machine.
      • (2) LED Brake/Tail lights – red color rear mounted LED lights.
      • (3) LED Underbody Work Lights – placed in strategic locations to illuminate service areas and surroundings
