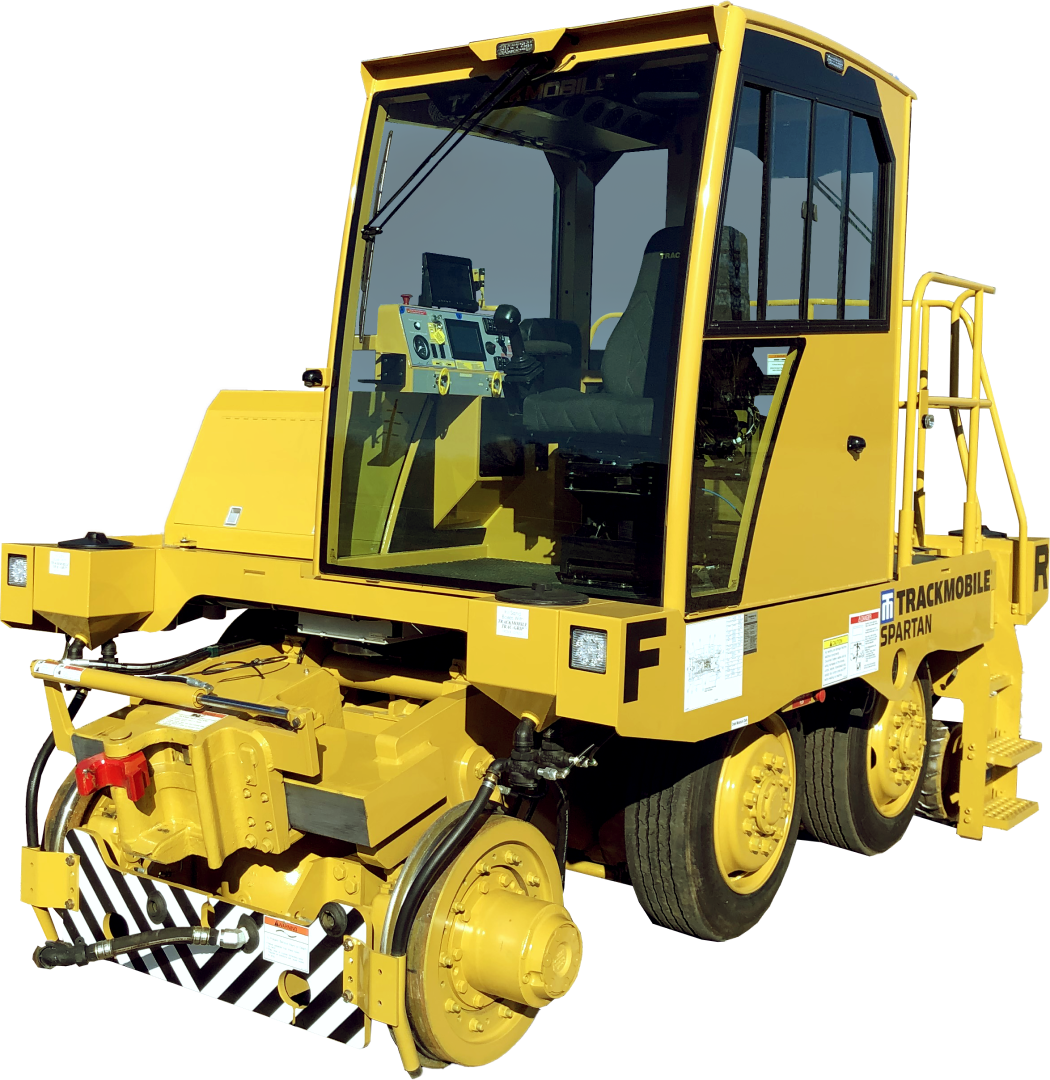

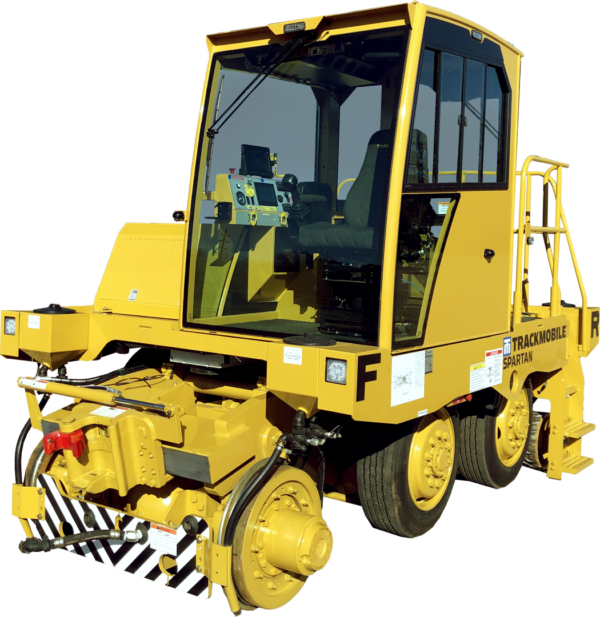

Spartan

The Spartan is Trackmobile’s answer to smaller operations where fewer railcars are moved. This unit is perfect for lower duty cycle applications where reliability is critical, Spartan quickly gets the job done safely and efficiently. Equipped with many of the same features as the larger Trackmobile units, Spartan operators enjoy the same dependable performance and ergonomically designed cab to ensure operator comfort.

Category:

FEATURES

  • Tier IV, 4-cylinder engine sized for optimal fuel efficiency and high idle time
  • SimpleView 7” Color Touch Screen Display
  • Safe-T-Vue™ 360⁰ Visibility and Railing Display
  • Ergonomic Air Ride, High Back 180⁰ Swivel Seat
  • Joystick and Armrest Controls
  • Neutral Braking
  • Programmed Throttle Control
  • CAN-Bus Control System with On-board Diagnostics
  • Automatic / Manual Power-Shift Transmission
  • 40 CFM Rotary screw air compressor
  • In-cab front and rear train air valves
  • Accessible External Disc Brakes
  • Impact Sensor / Recorder
  • LED lighting: headlights, strobes, and working lights

Enhanced features, such as:

  • Rail and Road Drive: air-activated locking differentials and outboard internal planetary axles
  • Pivoting frame: Heavy duty, High-strength 2.56” [65 mm] thick split pivoting the main frame linked by an oscillating bearing that pivots up to 10⁰ assuring 4-wheel rail contact at all times and extends axle life
  • Ergonomically designed cab with inset window and door seals
  • Forged steel wheels to provide longer wheel life
  • Enhanced cab with 12-step epoxy dipping and finish painting that penetrates and seals all crevices for superior rust resistance
  • Tinted and tempered glass that meets ANSI 26.1 standard

Datasheet

Spartan Model Brochure.pdf
