DLE vs Evaporation Ponds: Key Comparison
As lithium demand accelerates, the debate between DLE vs evaporation ponds has shifted from theory into project planning. When choosing between them, three metrics often determine the decision: speed, yield, and water (and land) use. Below is a structured breakdown to help decision-makers assess which route is best for a given resource profile.
Process Overview
Evaporation Ponds
Evaporation ponds are a traditional method of extracting lithium from brines. Brine is pumped into shallow, expansive ponds where sunlight and wind gradually evaporate water over many months or years. As water levels drop, salts precipitate in stages, concentrating lithium in solution, which is eventually harvested and refined.
DLE (Direct Lithium Extraction)
DLE refers to a set of newer technologies designed to extract lithium ions from brine more rapidly than through evaporation. Methods include adsorption, ion exchange (IX), solvent extraction (SX), and membranes (among others). Rather than relying on solar evaporation over extended periods, DLE systems focus on selectivity, faster kinetics, and closed-loop brine cycling.
Speed & Yield
Evaporation Ponds
- Speed: Very slow. The evaporation process typically takes 12 to 24 months, depending on the climate and brine concentration.
- Yield: Moderate. Typical recoveries in pond-based systems are often in the range of 30% to 50%, though actual yields depend on brine chemistry and operational controls.
DLE
- Speed: Much faster. DLE systems aim to recover lithium in hours or days, not months.
- Yield: Higher potential. Industry analysts project recoveries of 70% to 90% for well-designed DLE systems, which significantly outperform the yield ranges of evaporation ponds.
Case References
Some recent industry commentary suggests evaporation-based systems might recover 40-60%, while DLE could push that to 70-90%. (Wood Mackenzie) Goldman Sachs also notes that DLE enables the concentration of lithium beyond typical pond constraints. (Goldman Sachs)
Thus, in projects where time to market matters, DLE is much more attractive — assuming the technology is mature for that brine.
Water & Land Use
One of the most critical trade-offs in lithium extraction is the amount of water and land each method consumes.
Evaporation Ponds
- Water Use: High loss from evaporation. Wetlands International Europe estimates that each tonne of lithium output may require approximately 2 million litres of water to be evaporated.
- Land Use: Substantial. Because ponds must cover large surface areas, they compete with ecosystems, agricultural, or cultural land uses.
DLE
- Water Use: Much lower net water loss, because DLE systems recycle brine and aim to minimize fresh water consumption. Some DLE proponents claim very low water loss, eliminating the need for large evaporation.
- Land Use: Compact footprint. Without needing long rows of ponds, DLE installations can be modular and land-efficient.
Regulatory Angles
Authorities in water-stressed regions are scrutinizing pond-based operations more heavily. In some jurisdictions, permits for water withdrawal or impacts on ecosystems are more difficult to obtain. DLE’s lower water and land demands may ease regulatory barriers, especially in arid or sensitive zones.
CapEx / OpEx Signals
When considering capital and operational costs, both routes present distinct trade-offs.
- Evaporation ponds typically have lower capital costs for basic infrastructure (pond lining and channels). But long ramp times delay revenue.
- DLE systems generally involve higher upfront investment in chemical systems, membranes, reactors, and control systems.
- Operating expenditures in ponds are lower per se (low energy demand), but hidden costs can emerge from maintenance, site management, and brine handling.
- DLE operating costs tend to be higher due to energy, consumables (resins, membranes, reagents), and system maintenance, but may be offset by higher yields and faster production.
In financial modeling, one should weigh:
- Time to revenue (evaporation delay vs. DLE speed)
- Yield increases (more lithium to sell)
- Lifecycle operating costs (energy, consumables)
- Risk of downtime or inefficiency (for example, pond variations, weather, DLE system fouling)
Site Suitability
Not every brine site is equally suited to DLE or ponds. Key factors include:
- Climate & Solar Resource: Ponds work best where solar energy is abundant and evaporation rates are high.
- Brine Chemistry: High levels of magnesium, calcium, or organic content may challenge DLE sorbents or membranes.
- Water Resources & Permitting: In water-constrained or heavily regulated areas, DLE’s lower water consumption can be a decisive advantage.
- Land Availability: If land is limited or costly, DLE’s compact footprint is beneficial.
- Infrastructure & Power Access: DLE systems often depend on reliable power and control infrastructure, whereas ponds are simpler in that regard.
Conclusion
When comparing DLE vs evaporation ponds, the contrast is stark: DLE offers speed, higher yield potential, and dramatically lower water and land use, at the cost of greater complexity and higher capital requirements. Evaporation ponds, by contrast, are proven, lower-tech, and less capital-intensive — but slow, water-intensive, and land-hungry.
If your project prioritizes rapid throughput, high recovery, or constrained water/land, DLE is increasingly compelling. But technology maturity, brine chemistry, and operational risk must all be assessed.

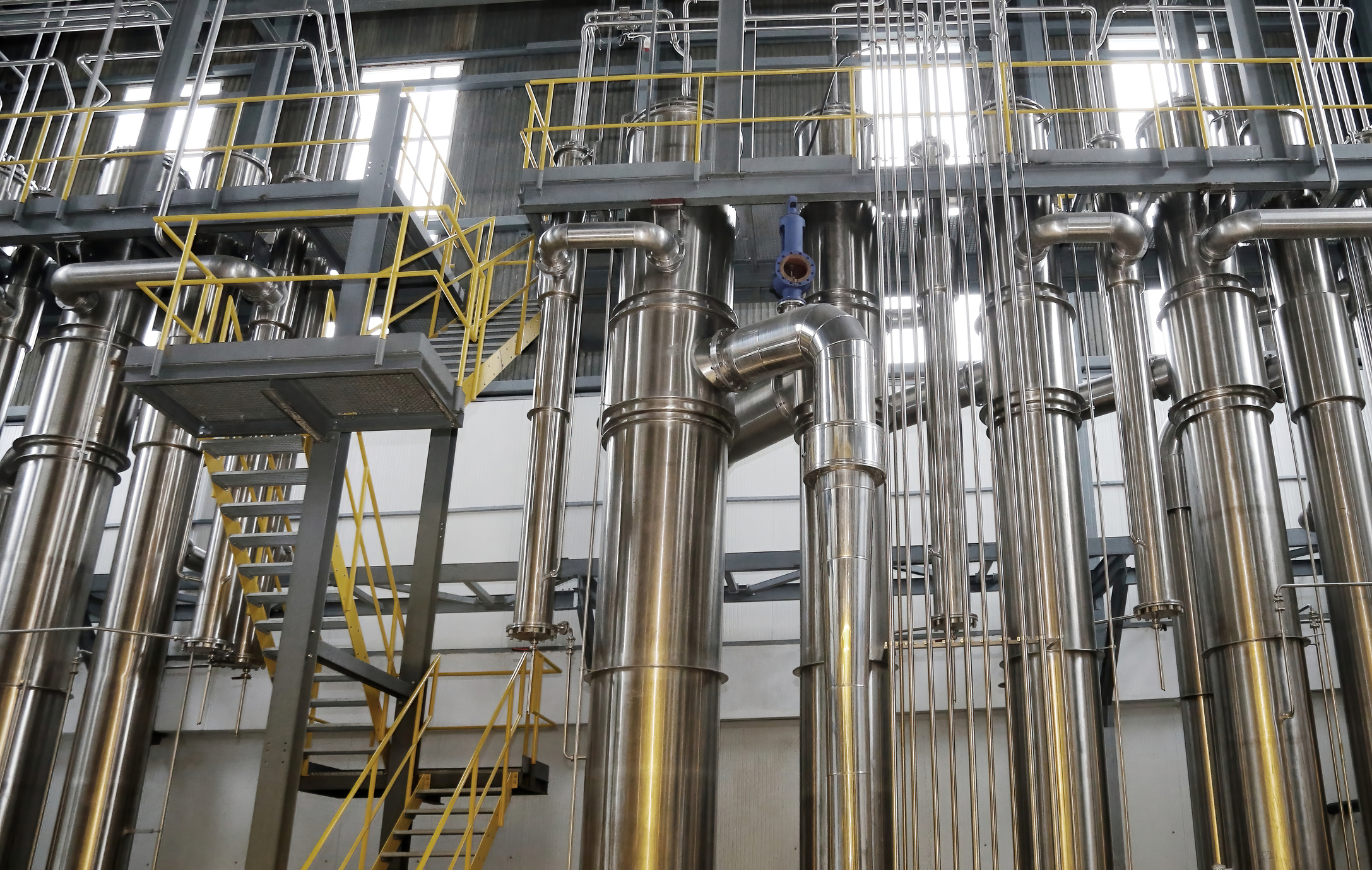

The Whiting and Swenson teams specialize in designing evaporation and crystallization systems for lithium refining. We can help you evaluate whether DLE vs evaporation ponds make sense for your resource, tailor pilot testing, and engineer a solution that balances speed, yield, water use, and cost. Contact our experts to discover which path best suits your lithium extraction project.
