Lithium Refining Using Crystallization
The global demand for lithium is skyrocketing, driven by increasing electric vehicle (EV) sales powered by lithium-ion batteries. However, pure lithium is not found in nature; it must be extracted and refined from liquid brines commonly found in salt lakes, oil field, geothermal brines, or from lithium-bearing minerals found in hard rock mines and some clay deposits.
The refining process isolates the lithium while removing contaminants and other chemicals to produce a pure, usable form of lithium. As lithium demand rises, so does the need for efficient, cost-effective lithium extraction and refining processes. Crystallization processes that are designed to form high purity lithium crystals by controlling how the crystal is
formed and grown have been proven to produce valuable battery-grade lithium products.
Lithium crystallization

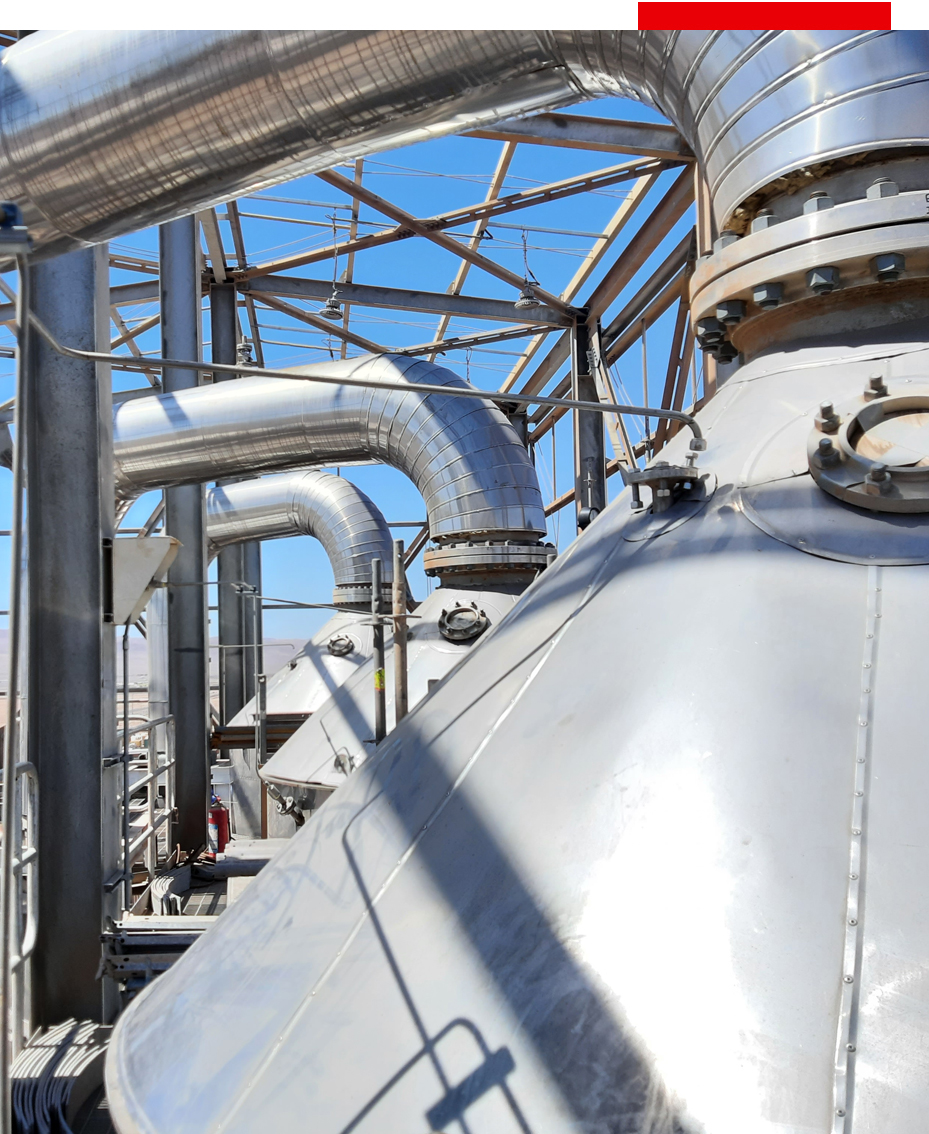

Benefits of Lithium Crystallization Technology from Swenson
Swenson leverages decades of supplying lithium crystallization process equipment expertise and world class experience to design a lithium refining system that meets the unique demands of your lithium source and battery production purity demands.
As a result, Swenson lithium refining crystallizers enable our clients to do the following:
- Maximize recovery of high purity, battery-grade lithium products.
- Effectively and efficiently remove contaminants.
- Reduce costs and increase revenue by improving process efficiency.
Trusted for over 100 years.
Our Clients

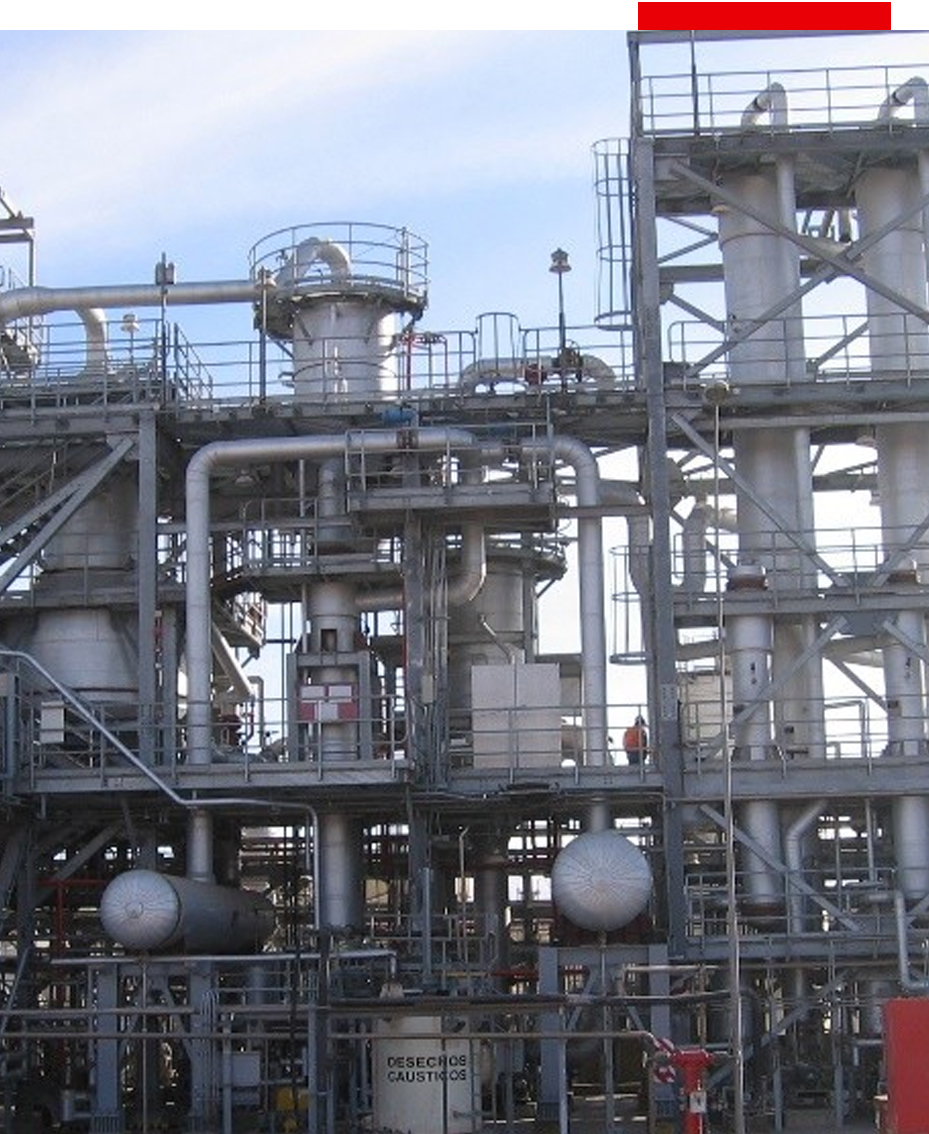

Lithium Refining Crystallization Systems
Years of know-how and experience to properly engineer the process to control the formation of the crystals in a manner that effectively separates the impurities. Each lithium source stream, either produced from lithium brines or hard rock, has its own impurity profile that requires unique design approaches. Crystallizers can be used to effectively remove contaminants from lithium sources to improve the lithium recovery. It is important to
work with an experienced crystallizer technology partner that provides the breadth of experience necessary to successfully address all challenges.
Complete Customized Solution

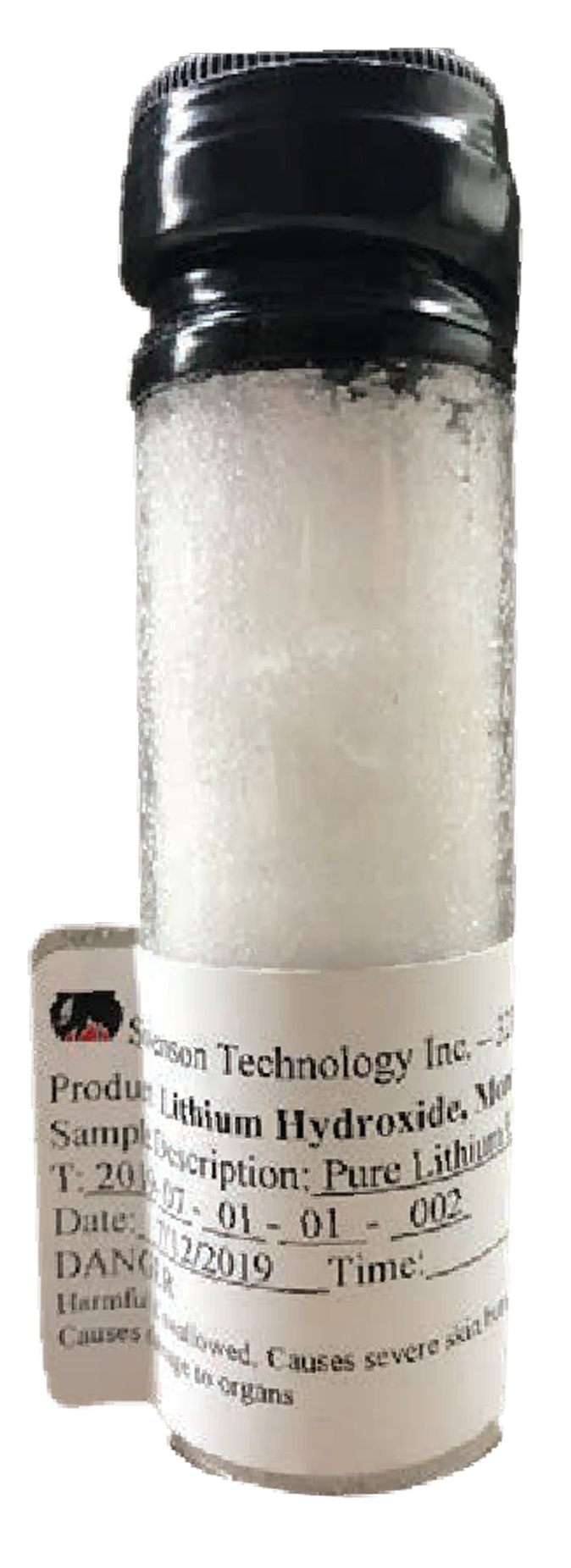

Battery Grade Lithium Pure
LiOH·H2O Crystal Product
1. Modelling and Simulation
Design starts with an understanding of the thermodynamics and chemical behavior to improve the process and economics. This is very important for efficient processing and contaminant removal.
2. Bench Testing
Process and flowsheet development.
Glassware testing provides:
Proof of concept I Physical data
I Crystal data:
- Yield
- Purity
- Morphology
3. Pilot Testing
Generate data for commercial plant design.
Pilot testing facilities include:
- Forced circulation
- Falling film
Crystallizers
- Draft tube baffle (DTB)
- Forced circulation
- Evaporative
- Cooling
Pilot testing provides:
- Fouling and scaling tendencies
- Crystal data:
- Washing requirements
- Centrifuge performance
- Breakage
4. Process Design, Equipment Sizing, and
Cost Estimation
Design commercial plant process and equipment, and evaluate costs.
5. Fabrication, Delivery, and Commissioning
Implementation of successful commercial operation.
We Test, Develop, Engineer, And Manufacture Your Solution

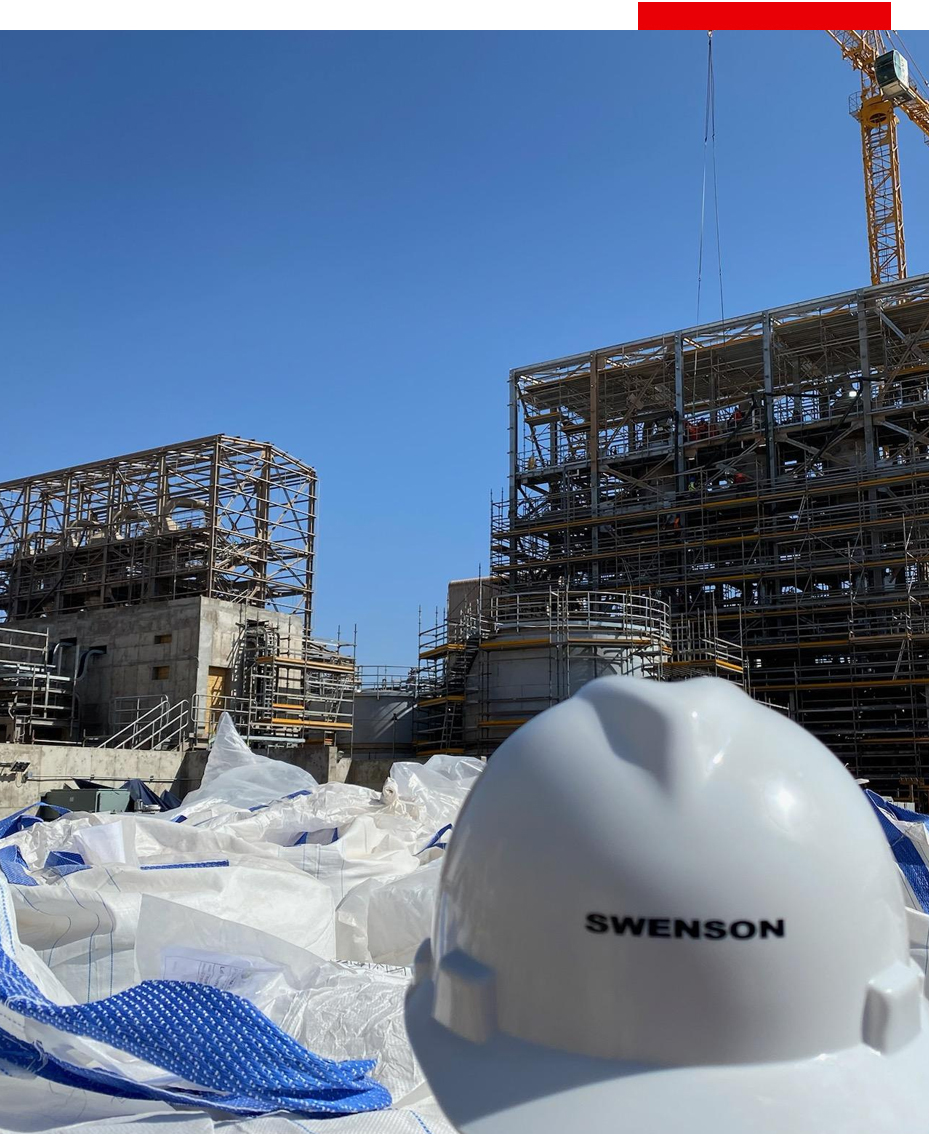

Other Lithium Battery Raw Materials Refining Crystallization Systems
Swenson Crystallization Technology has proven effective for refining of other Lithium Battery Raw Materials such as:
- Nickel
- Cobalt
- Manganese
